BR-6524K

Print This Page




Dual WAN Broadband Router

  • Aggregate Bandwidth
  • Mix DSL and Cable broadband line
  • Failover between WAN lines
  • Load Balancing between WAN lines
  • T1 alternative



Press Release Product ReviewUser Manual Datasheet

Contact Us for Where-to-Buy

  Description

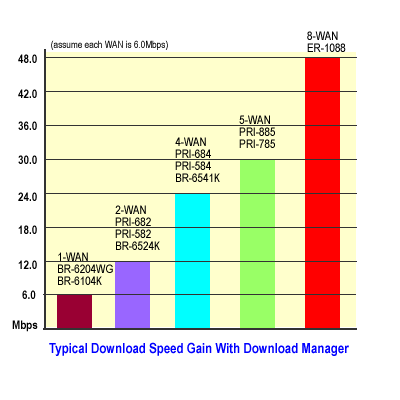

Increasing Internet Speed is as simple as 1 + 1 = 2

The advent of widespread broadband accesses makes the business case, that two links is better than one…in fact, the more the better.  With multiple WAN connections and the BR-6524K and BR-6541K, you will get the effective addition of the combined speeds for all users.  You will also get a redundant, fault-tolerant, and fail-over capability to insure that you will have continued Internet access when one of the ISP’s link is down.  To some businesses this reliable connection is vital because the downtime of even just a few minutes is equal to quite a bit of revenue loss.

In addition to the standard features of a professional grade router, our BR-6524K and BR-6541K has the following exclusive features:

  • More than 2 WAN ports (model BR-6541K)

  • Load balancing based on the WANs’ speed

  • Quality of Service (QoS) control

  • Email alert.

  Key Features


Features and Benefits - Multi-Homing

Multiple WAN Ports

 Aggregate bandwidth by combining 2  WAN lines

DSL or Cable

 Mix DSL and Cable modem broadband lines
Failover    Failover between WAN ports for un-interrupted connection
Load Balancing    Distributed over the dual WAN ports
20Mbps Data Rate    High WAN to LAN throughput

T1 alternatives

 Take advantage of the low-cost DSL & cable modem

 Features and Benefits - Router

Internet Sharing

 Support up 253 users to share 2 WAN lines
DSL & Cable    Internet access via DSL or Cable Modem
Advanced Features    Special applications support for Internet games, telephony,     video conferencing, etc.
   Virtual Server for setup local web, email, FTP servers
   Address mapping let local IP mapped to different public IP

Firewall

 Block users' access of internet
   Block users' access of specific web sites
   Control users' internet access days & times
   URL blocking by address or keywords
   Intrusion Detection with Email alert
   DMZ re-direct all packets from WAN port to specific local IP
   Natural firewall by NAT (Network Address Translation)

QoS Bandwidth Control

 Prioritize service by classifying packets
  Router Status Monitoring    DHCP Client and security log
   Device/Connection Status
Remote Management  Configure and upgrade from remote site via internet
Professional Capability  Router configuration backup, recovery and reset

Friendly Interface

 Web-based GUI for configuration and management

DHCP

 Built-in DHCP server configuring  IP address automatically

VPN Support

 VPN Pass Through

UPnP

  Automatic configuration between router and applications

LAN Ports

 4 10/100Mbps LAN ports

  Specifications


Model NO.
BR-6524K
BR-6541K
CPU
ADMtek 5120 (175MHz MIPS R4000)
Throughput
54 Mbps
WAN Port
10/100M UTP Port x 2
10/100M UTP Port x 4
LAN Port
10/100M UTP Port x 4
10/100M UTP Port x 1
Weight
270g
Power
12V DC, Linear Power Adapter
Dimension
30(H)*187(W)*100(D) mm
Temperature
10~40 0C
Humidity
10~90% (Non-Condensing)
Certification
FCC Class B, CE Mark, C-Tick
